How to Create an SSH Tunnel

What is an SSH Tunnel?

An SSH tunnel is a method of routing data and information securely over an encrypted SSH (Secure Shell) connection. Think of it like sending correspondence in a sealed envelope rather than a postcard. SSH tunneling enables secure remote system access through an encrypted data passageway that prevents interception.

Creating SSH Tunnel on Windows

Windows users should use PuTTY, a recognized SSH management tool.

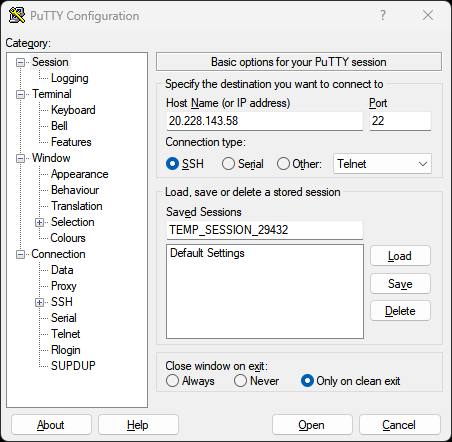

Step 1: Open PuTTY and enter the IP or Host Name for the remote server.

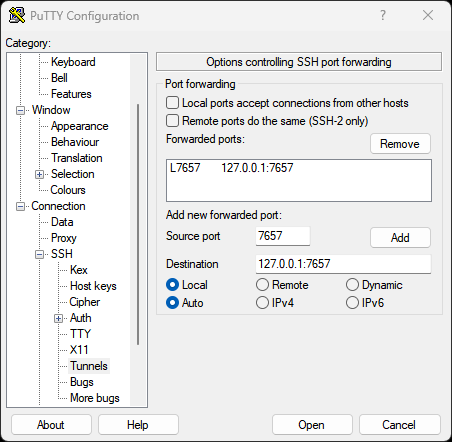

Step 2: Expand the SSH tab and click on Tunnels. Source port can be any number from 1-65535 (unused). Enter the destination as:

127.0.0.1:7657

• 127.0.0.1 - Localhost IP on remote server
• 7657 - Destination port assigned to I2P console

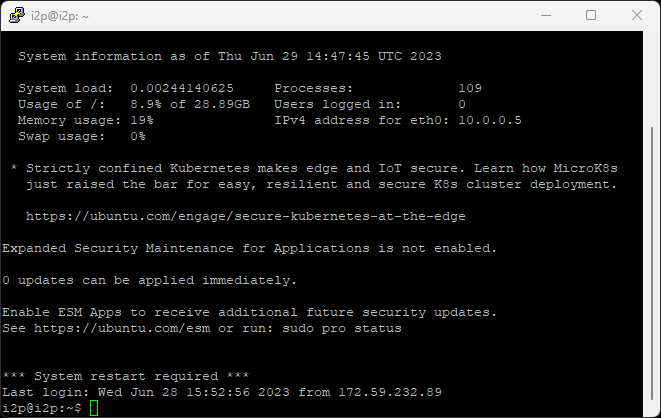

Step 3: Click Open and enter username and password.

Configuring SSH Tunnel on Linux

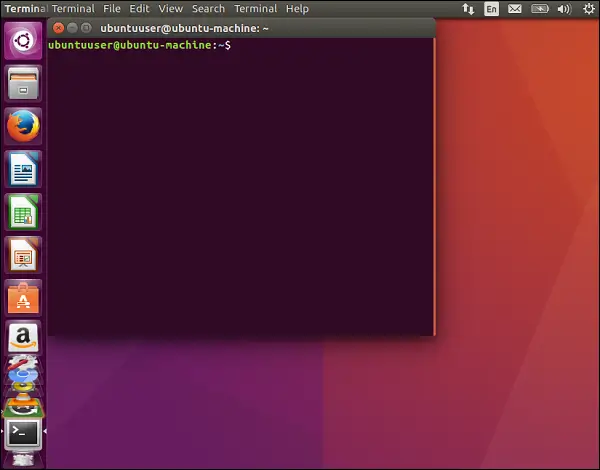

Step 1: Open the terminal.

Step 2: Enter the following command into the terminal:

ssh -L 7657:127.0.0.1:7657 i2p@20.228.143.58

Parameter breakdown:

• 7657 (first) - Local port selection (1-65535, unused)
• 127.0.0.1 - Localhost IP on remote server (destination)
• 7657 (second) - Destination port for I2P console
• i2p - Username for remote server login (varies per user)
• 20.228.143.58 - Remote server IP with I2P installation

Creating SSH Tunnel on Mac

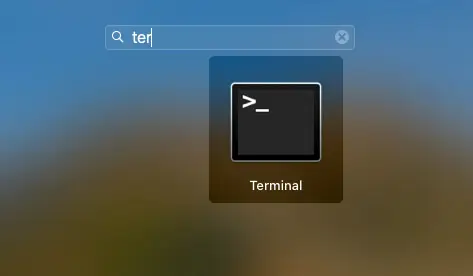

Step 1: Open the terminal.

Step 2: Enter the following command into the terminal:

ssh -L 7657:127.0.0.1:7657 i2p@20.228.143.58

Parameter breakdown:

• 7657 (first) - Local port selection (1-65535, unused)
• 127.0.0.1 - Localhost IP on remote server (destination)
• 7657 (second) - Destination port for I2P console
• i2p - Username for remote server login (varies per user)
• 20.228.143.58 - Remote server IP with I2P installation
